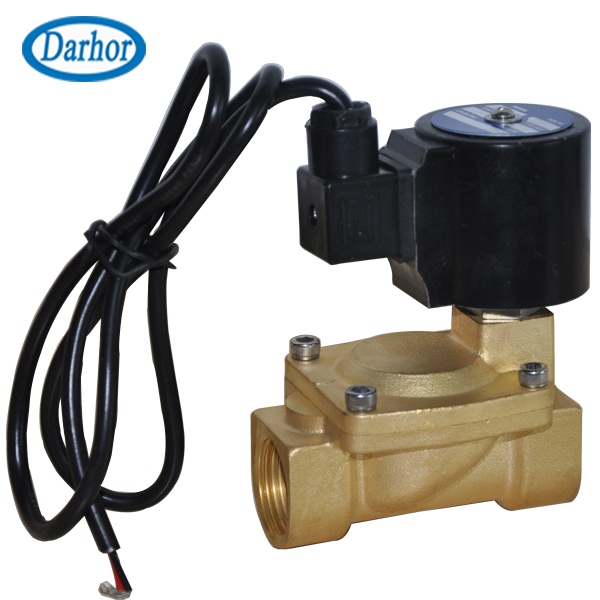

DHDF-B brass fountain solenoid valve

DHDF-B brass fountain solenoid valve


Product name:DHDF-B brass fountain solenoid valve
Item:
Details:
Fountain with solenoid valve DHDF
Characteristic: 1. with diaphragm construction for fountain use matched with watertight coil
                     2. Opening speed at 10 times per second
Medium:          Water
Temperature:   NBR Seal: 14F to 176F, -10 to 80
                     EPDM Seal: 14F to 250F, -10 to 120
                     VITON Seal: 14F to 300F, -10 to 150
Pressure:         DHDF: 0 ~ 5 bar

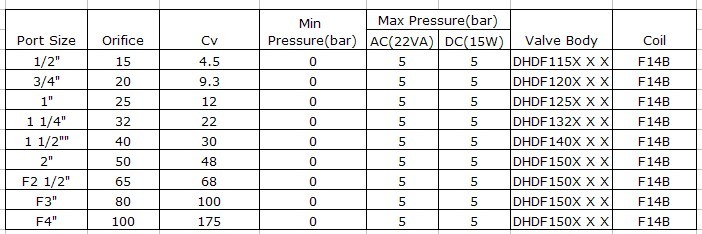

Port Size:        1/2", 3/4", 1", 1 1/4", 1 1/2", 2", F2 1/2", F3", F4"
Port Thread:    BSPP, BSPT, NPT, Flange
Orifice (mm):   15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 150
Voltage:          DC - 12V, 24V
                     AC - 24V, 120V, 240V/60HZ 110V, 220V/50HZ
Tolerance:       +/- 10%
Coils:               F14B, 26VA (AC), 13W (DC), IP68 100%ED
Material:          Body - Brass,stainless steel or plastic
                      Seal -NBR, EPDM, PTFE or VITON
                      Armature Tube - Stainless Steel 304
                      Plunger - Stainless Steel 430F
                      Stop -SS430F
                      Springs - SS 304
                      Shading Rings - Stainless Steel 304
DHDF Normally Closed, with Coil F14B







     [Next]     [ Back ]




Related Products :
DHDF-O normally open brass fountain solenoid valve

DHDF-O normally open brass fountain solenoid valve

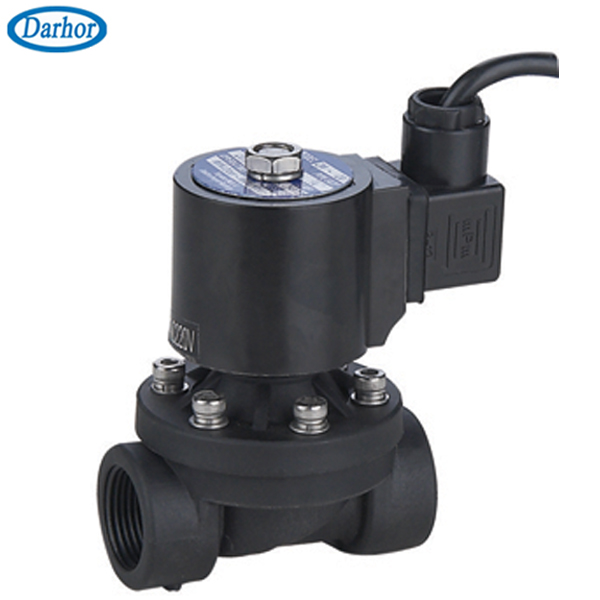

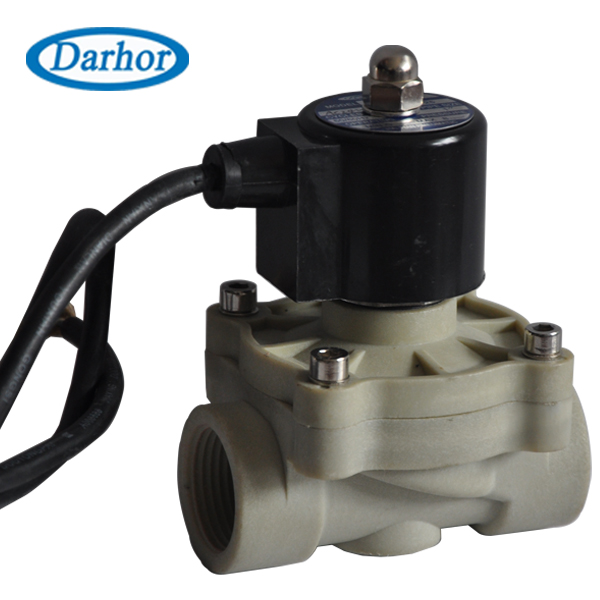

DHDF-P plastic fountain solenoid valve

DHDF-P plastic fountain solenoid valve
DHDF-Nylon plastic fountain solenoid valve

DHDF-Nylon plastic fountain solenoid valve

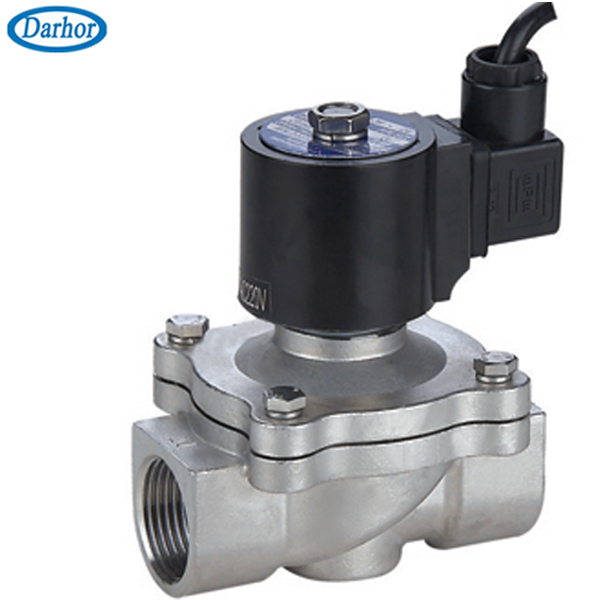

DHDF-S stainless steel fountain solenoid valve
