5515-09 combination solenoid valve

5515-09 combination solenoid valve


Product name:5515-09 combination solenoid valve
Item:
Details:
55XX Series Direct Acting Solenoid Valve,
2WAY/3WAY SMALL HOME APPLIANCES VALVE

Characteristic: 1.Direct acting miniature construction at low power consumption
                      2.With TUV certificate for household appliance use like coffee machine, electrical iron, steam cleaner
                      3.Applied to low pressure system, open from 0 bar
Medium:         Air, Water, Steam, Oil, etc
Temperature:   NBR: -10℃ to 80℃
                      VITON: -10℃ to 150℃
Pressure:        55 series: 0 ~ 20 bar
Port Size:        1/8" and other
Port Thread:    BSPP, BSPT, NPT
Orifice (mm):   1.0, 1.2, 1.6, 2.0, 2.6, 2.8
Voltage:           DC - 12V, 24V
                       AC - 24V, 120V, 240V/60HZ; 110V, 220V/50HZ
Tolerance:        +/- 10%
Coils:               SA11B, 8VA (AC), 8W (DC), IP65, 100%ED
Material:          Body - Brass
                      Seal -VITON,NBR,EPDM
                       Armature Tube - Stainless Steel 304
                       Plunger - Stainless Steel 430F
                       Stop - SS430F
                       Springs - SS 304
                       Shading Rings - Stainless Steel 304

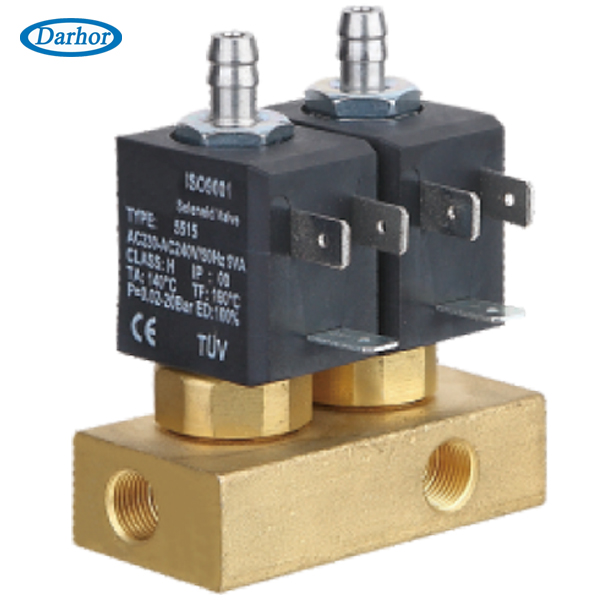

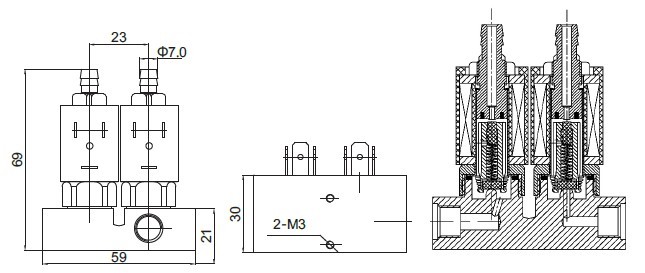

5515-09 Combination valve
Media:        Water, air, oil, hot water, etc.
Media TEP: -10℃ - 150℃
Body:        Brass
Pre:           0 – 15.0 Bar
Port:         Inlet& Body: G1/8″ or NPT 1.8″
                Top: Φ7.0mm outer dia.
Orifice:    DN 1.0
Seal:        VITON
