DHG31 brass 3 way 2 position solenoid valve

DHG31 brass 3 way 2 position solenoid valve


Product name:DHG31 brass 3 way 2 position solenoid valve
Item:
Details:

Miniature valve DHG31

Characteristic:  1. Direct acting miniature construction at low consumption.
                       2.Compact design to save the space
                       3.Applied to low pressure system, open from 0 bar
Medium:           Air, Water, Steam, Oil, etc
Temperature:    NBR Seal: 14F to 176F, -10 to 80
                       EPDM Seal:  14F to 250F, -10 to 120
                       VITON Seal: 14F to 300F, -10 to 150
                       PTFE Seal: -4F to 350F, -20 to 180
Pressure:          DHG31:0 ~ 15 bar
Port Size:          1/8", 1/4"
Port Thread:      BSPP, BSPT, NPT
Orifice (mm):     1.6, 2.0, 2.5, 3.0, 3.5, 4.0, 5.0
Voltage:            DC - 12V, 24V
                       AC - 24V, 120V, 240V/60HZ; 110V, 220V/50HZ
Tolerance:         +/- 10%
Coils:                S91B, 17VA (AC), 10W (DC), IP65, 100%ED
                        NASS COIL 0543 on request
Material:           Body - Brass or stainless steel
                        Seal -VITON,NBR,EPDM
                        Armature Tube - Stainless Steel 304
                        Plunger - Stainless Steel 430F
                        Stop -SS430F
                        Springs - SS 304
                        Shading Rings - Stainless Steel 304

Remark: DHG31: Normally closed
Other parameters are the same

DHG31 Series, 3 way, with Coil S91B NO



Port Size



Body(mm)



Top (mm)



Cv



Min Pressure(bar)



Max Pressure(bar)



Valve Body



Coil



AC(22VA)



DC(17W)



1/8"



1.6



1.6



0.25



0. 0MPa



1. 0MPa



0. 8MPa



DHG3116X X X X



S91B



1/8"



2.5



2.5



0.25



0. 0MPa



0. 8MPa



0. 6MPa



DHG3125X X X X



S91B



1/8"



3



1.5



0.35



0. 0MPa



0.5MPa



0.4MPa



DHG3130X X X X



S91B



1/4"



1.6



1.5



0.25



0. 0MPa



1. 0MPa



0. 8MPa



DHG3116X X X X



S91B



1/4"



2.5



1.5



0.25



0. 0MPa



0. 8MPa



0. 6MPa



DHG3125X X X X



S91B



1/4"



3



1.5



0.35



0. 0MPa



0. 5MPa



0. 4MPa



DHG3130X X X X

S9








[Previous]      [Next]     [ Back ]




Related Products :
VX3 solenoid valve 3 way

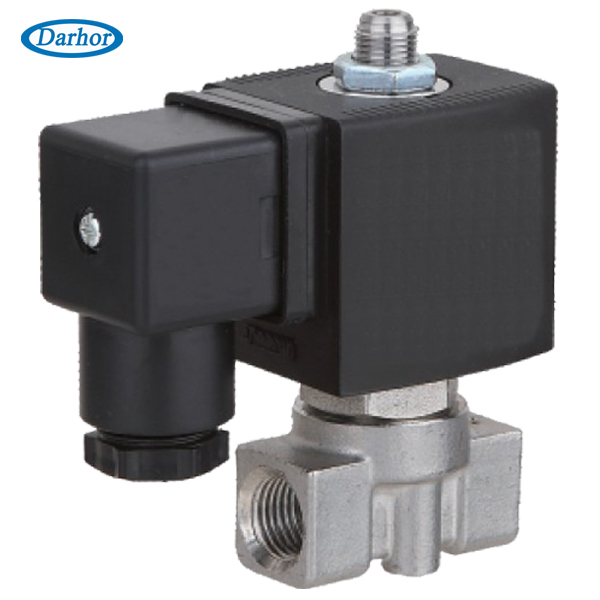

VX3 solenoid valve 3 way
3/2 RSW solenoid valve

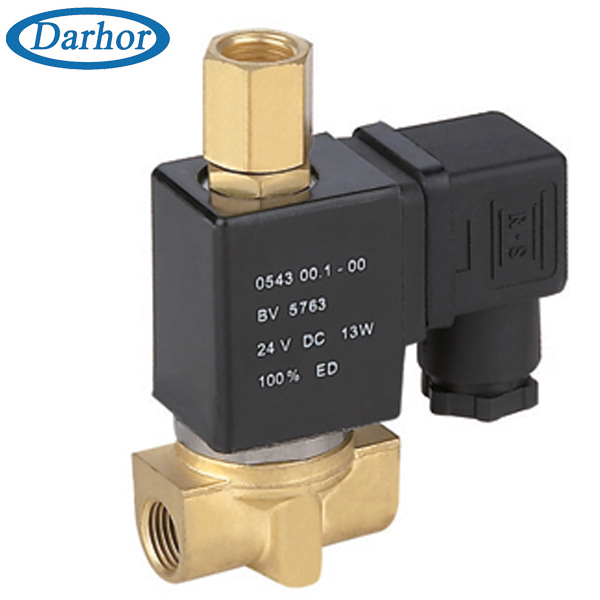

3/2 RSW solenoid valve
DHG21-S 3 way 2 position solenoid valve

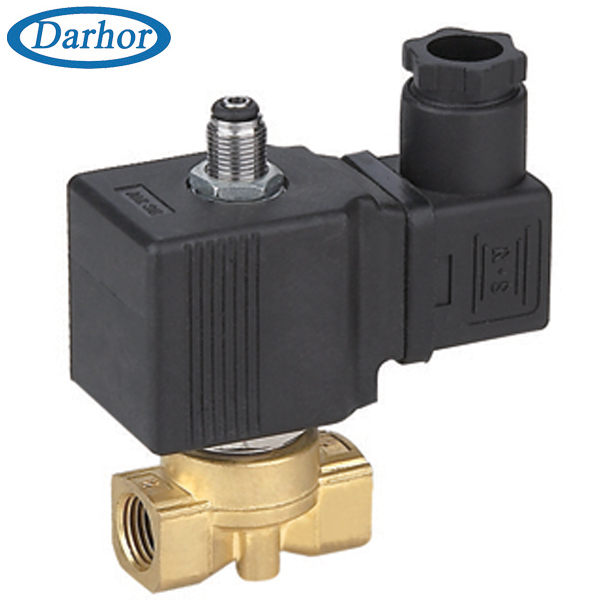

DHG21-S 3 way 2 position solenoid valve
DHVM 3 way solenoid valve, ASCO8320

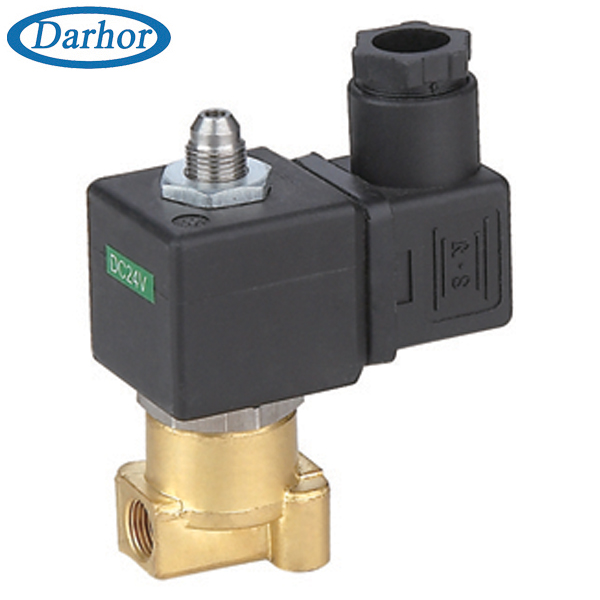

DHVM 3 way solenoid valve, ASCO8320
DHVM-J 3 way solenoid valve, ASCO8320

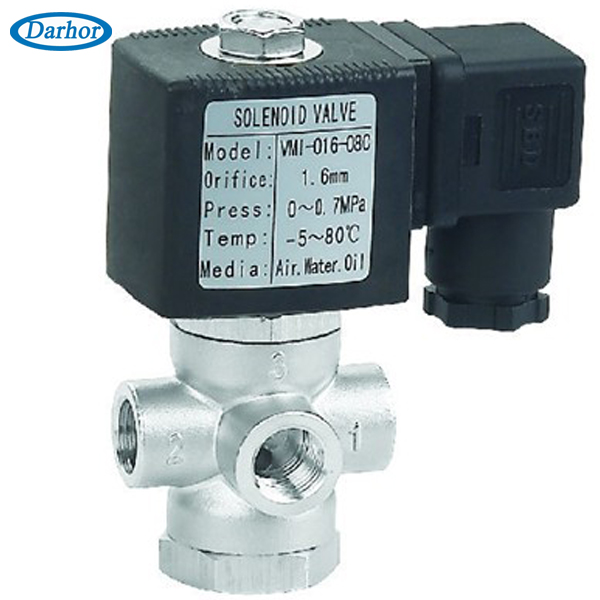

DHVM-J 3 way solenoid valve, ASCO8320
DHG31-S 3 way 2 position solenoid valve

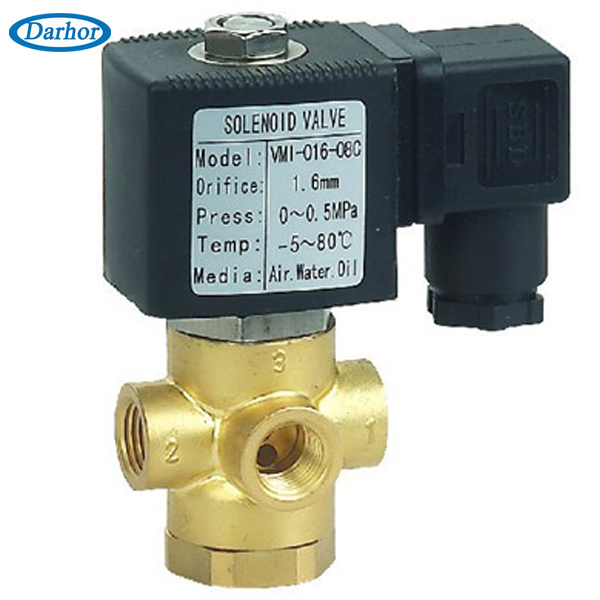

DHG31-S 3 way 2 position solenoid valve
231Y 3 way solenoid valve

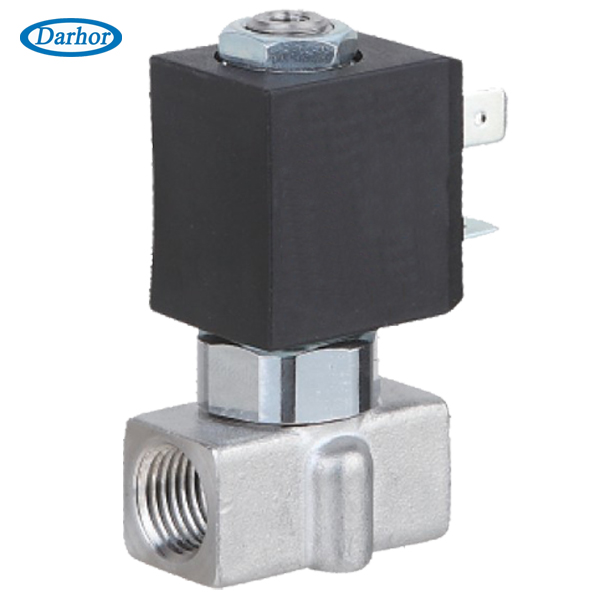

231Y 3 way solenoid valve
