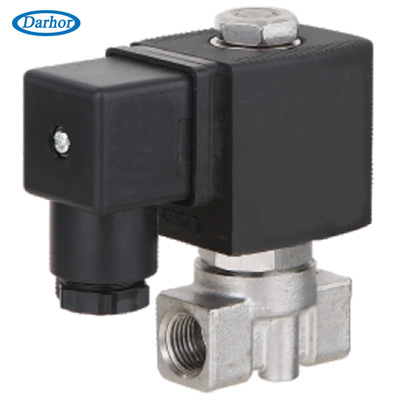

DHSM31 direct acting solenoid valve

DHSM31 direct acting solenoid valve


Product name:DHSM31 direct acting solenoid valve
Item:
Details:

Miniature Valve DHSM31-normally closed

Characteristic:  1.Direct acting miniature construction at low power consumption
                      2.Compact design to save the space
                      3.Applied to low pressure system, open from 0 bar
Medium:          Air, Water, Steam, Oil, etc
Temperature:   NBR Seal: 14F to 176F, -10 to 80
                      EPDM Seal:  14F to 250F, -10 to 120
                      VITON Seal: 14F to 300F, -10 to 150
                      PTFE Seal: -4F to 350F, -20 to 180
Pressure:        DHSM31:0 ~ 16 bar
Port Size:        1/8",1/4",3/8",1/2″
Port Thread:     BSPP, BSPT, NPT, FLANGE
Orifice (mm):     1.6, 2.0, 2.5, 3.0, 3.5, 4.0, 5.0
Voltage:          DC - 12V, 24V
                      AC - 24V, 120V, 240V/60HZ; 110V, 220V/50HZ
Tolerance:        +/- 10%
Coils:               S91B, 17VA (AC), 10W (DC), IP65, 100%ED
Special coils:    Latching coil. DC 6 ~ 12 V on request
Material:      Body - Brass or stainless steel
                  Seal -VITON,NBR,EPDM,
                  Armature Tube - Stainless Steel 304
                  Plunger - Stainless Steel 430F
                  Stop -SS430F
                  Springs - SS 304
                  Shading Rings - Stainless Steel 304

DHSM31 Normally closed, with Coil S91B

Valve Body

Port Size

Orifice

Cv

Min Pressure(bar)

Max Pressure(bar)

Coil

AC(22VA)

DC(17W)

DHSM3101X X X X

1/8″

1.6

0.11

0

16

16

S91B

DHSM3103X X X X

1/8″

2.5

0.18

0

12

12

S91B

DHSM3104X X X X

1/8″

3

0.3

0

10

10

S91B

DHSM3103X X X X

1/4″

2.5

0.18

0

12

12

S91B

DHSM3104X X X X

1/4″

3

0.3

0

12

12

S91B

DHSM3105X X X X

1/4″

3.5

0.34

0

10

10

S91B

DHSM3106X X X X

1/4″

4

0.5

0

9

9

S91B

DHSM3107X X X X

1/4″

5

0.61

0

6

6

S91B

DHSM3105X X X X

3/8″

4

0.5

0

6

6

S91B

DHSM3106X X X X

3/8″

4.5

0.61

0

4

4

S91B

DHSM3107X X X X

3/8″

5

0.71

0

3

3

S91B

DHSM3105X X X X

3/8″

6

0.8

0

3

3

S91B

DHSM3106X X X X

3/8″

8

1.24

0

1

1

S91B

DHSM3107X X X X

1/2″

10

1.72

0

1

1

S91B
